The customized single pass digital inkjet printer is an efficient and precise industrial-grade printing device. It adopts single-pass printing technology and can complete full-format printing in one pass, significantly improving production efficiency. It is suitable for packaging printing, label printing, textile printing, and other industries. Compared with traditional multi-pass scanning inkjet printers, this device can maintain excellent image quality and color consistency while running at high speed, making it an ideal choice for high-end customized production.

This machine is equipped with advanced industrial nozzles, with high resolution, fast color fixation and other characteristics, and can accurately control ink droplet injection to achieve clear and sharp details. Its intelligent ink management system supports a variety of water-based, solvent-based, or UV-curable inks to meet the printing needs of different materials, such as paper, plastic, metal, ceramics, etc.
The customized single pass digital inkjet printer combines high-speed transmission with precise alignment technology to ensure that every print can meet high-quality standards, while reducing material waste and improving production stability. It also supports customized function expansion, can adjust nozzle arrangement, ink type, and printing width according to customer needs, and is compatible with a variety of industrial automation production lines.

Video Description

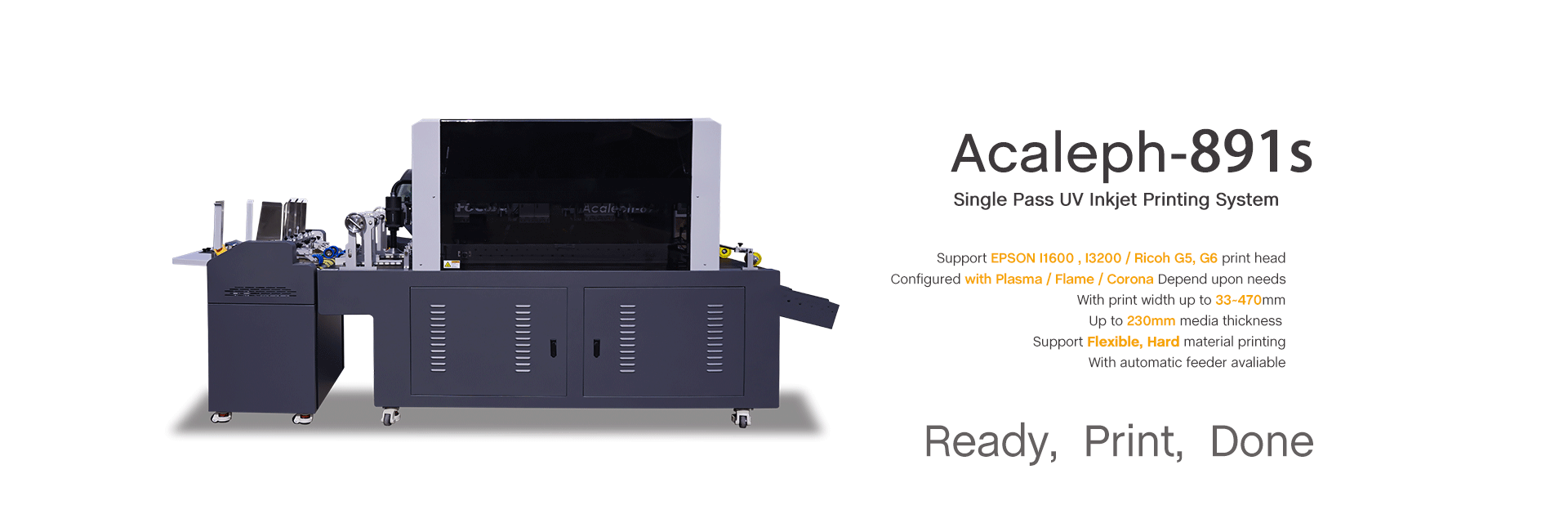

Focus Acaleph-891s UV single pass printer was special designed for customer who want to get a print that can print on various of hard and flexible material with high speed, such as plastic bags, non woven bags, tag...

It is a termial and profesional solution for direct  to packaging printing as it is full color inkjet printing with UV curing and automatic feeder system, it also allow to print as Primer+White+KCMY+LCLM+Varnish, to create more value for the digital inkjet printing market.


PRINTING DEMO:

TECHNICAL ADVANTAGE:

The Focus Acaleph-891s UV single pass printer was built with industrial configuration, it support to amount with different kinds of print head as EPSON, RICOH, SEIKO, TOSHIBA, KONICA for diffferent printing solution. it take vacuum adsorption, laser margin guidence, reflective laser sensor, Automatic overlap correction system, uv curing system, automatic material feeder system...

MULTI-HEADS ARRAY DESIGN  The multi-head array design allow you to mount the print head according to print width to meet different requirement.	LINEAR LED UV CURING SYSTEM Configured with 2-5pcs linear LED UV curing lamp to achieve the fast dry uv printing with high quality.

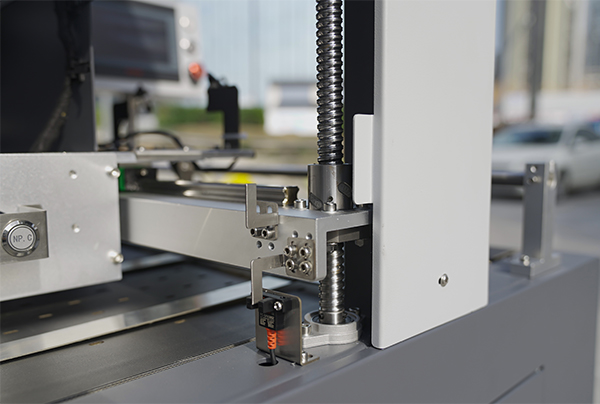

AUTOMATIC FEEDING SYSTEM The full automatic feeding system can feed the material with thickness small than 15mm as cardbard, bags... it can improve the productivety effiectly.	ADJUSTABLE  MOTION CORRECT SYSTEM The left right ball screw motion correct system can make sure the white, color varnish printing without overlap.
CARRIAGE WIDTH ADJUSTABLE  The carriage can be move left right to allow you print with different material as tote bags.	SUPER LENGTH VACUUM TABLE The super length vacuum adsorption vacuum table to hold the conveyer smooth motion to print on flexible material.
PLASMA CORONA SYSTEM. It allow you to add with Plasma, Flame, Corona pre process system for different printing material to achieve printing ink no removable.	NEGOTIVE+ACTIVE INK SUPPLY SYSTEM Configured with negotive and active pressure ink supply system to ensure the stable ink supply printing and maintenance.

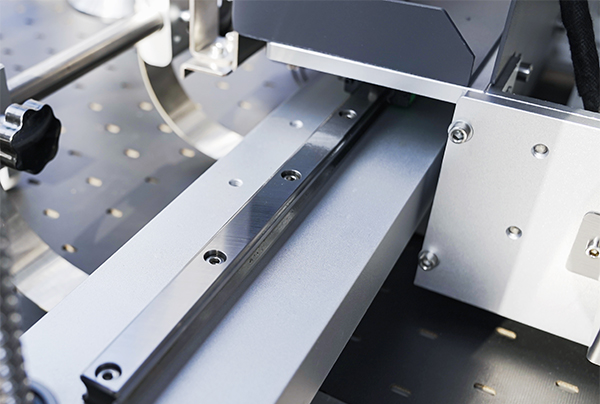

PROFESIONAL CONVEYER The professional special high quality motion conveyer belt can ensure the Y axis motion without overlap to get the high precision printing quality.	SUPER 20CM MEDIA THICKNESS It allow you to print on various of material as bags, box, tank ,jar thanks to the super 20cm media thickness design and it also adjustable.

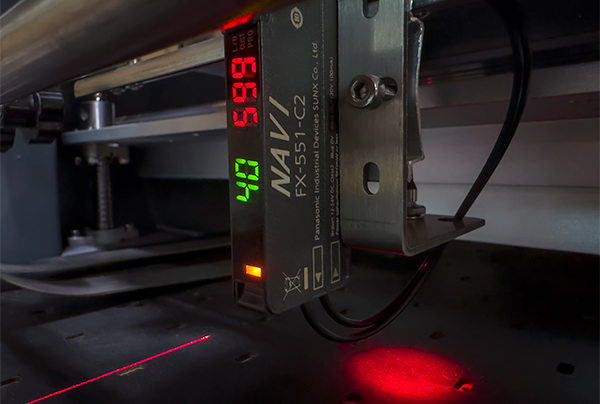

AUTOMATIC MEDIA THICKNESS DETECT It can detect the media thickness automatically by the high quality media detect sensor. to improve the production and protect the print head effectively.	AUTOMATIC MEDIA LOAD DETECT  The laser relfect sensor can detect feeded media for printing automatically.  to detect the media gap for achieve the borderless printing.

PRINTING SAMPLE:

PRINT ON FAST FOOD BAGS PRINTING:
The Focus Acaleph-891s UV single pass printer with vacuum adsorption function allow you to print on soft flexible material as fast food plastic bags.

FLEXIBLE PLASTIC TOTE BAGS PRINTING: With laser line margin guidence system can ensure you to print the image with correct position with high quality.	DIRECT TO PACKAGING BAGS PRINTING: Thanks to the Focus inc. powerfull ICC colour management system to achieve the vivid color printinting.

Focus Acaleph-891s UV single pass printer built with max. 200mm media thickness gap motion. It means you can print on various of media except bags, such as metal , glass, wood, box, bottles...

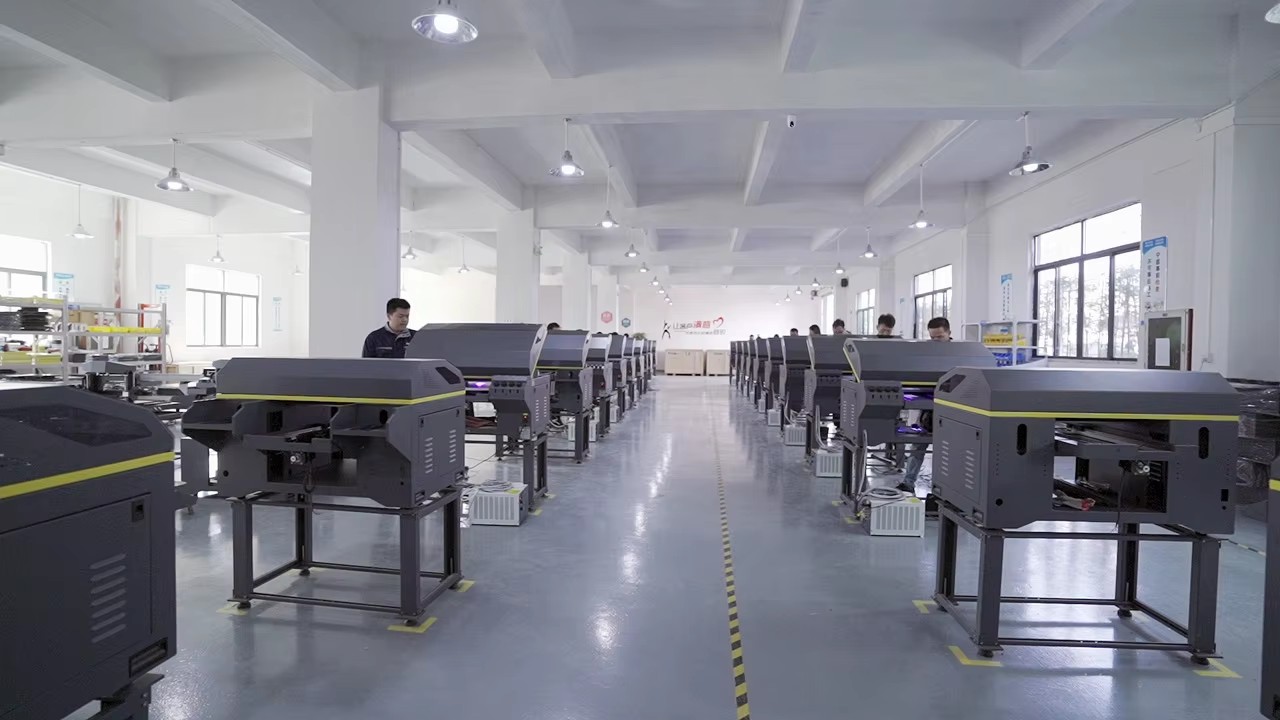

ABOUT FOCUS INC.
