Product introduction
So, if you buy a UV printer for own using:
Focus Inc. Alpha-Jet X flatbed uv printer with the newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. In addition to supplying technology for product customization, We offer a range of small and large UV printer devices. These are machines for customizing and creating unique graphics products. Capitalizing on its peerless heritage in compact UV LED direct-to-object print technology, the plus reaffirms Focus's market dominance in this rapidly developing sector. Geared to on-demand printing of the very highest quality at industrial production levels of output, Focus Alpha-Jet X UV flatbed printer utilizes state-of-the-art technology to deliver a powerful and reliable digital alternative to traditional screen print operations.
A Smart Machine for Customizing Hundreds of items
Using the newest LED-UV curing technology, the Alpha-Jet is a low-heat, water-cool-running machine thatcombines with vibrant UV inks to print on the following materials:
Choose a Right Machine to Suit Your Budget and Your Business
FOCUS INKJET ALPHA-JET A2 SIZE UV PRINTER |
|
Print Technology: Micro Piezo Inkjet |
Print Head: 3pcs EPSON F1080(XP600) |
Head Channel: 18 channels |
Head number: 3-head: White+Color+Varnish |
UV system: 100-Degree adjustable |
Cooling system: Water cooling |
Temperature adjust: Auto on/off. 25-35℃ |
UV wavelength: 395-405nm |
Head protection: Intelligent anti-scratch |
Print speed: 175s/A2 size(1440*720dpi) |
Print model: Unidirection/Bidirection |
Print resolution: 720*720dpi-720*3080dpi |
Print type: One pass/Single/Copies |
White layer: Bottom/Top/Middle |
Rip software: FocusRIPV9.07 |
Image type: Tiff, Jpeg, Png, Psd, Pdf |
Repeat precision: 0.04mm |
Head cleaning: Auto flushing+Keep wet |
Max. print size: 40*60cm |
Print media: Hard/Flexible/Bottle/ Tshirt |
Media thickness adjust: Software auto detection |
Max. print thickness: 20cm |
Ink type: UV ink |
Ink system: Refill ink tank system |
Ink process system: Auto shaking + circulation |
Ink level: Auto detection+Auto alarm |
Color model: 8-color(CMYK+LC+LM+White+Varnish) |
Tank volume: 500ml refillable |
Color Rendition: ICC profile+Curve |
Position type: Laser marking |
Print table: Vacuum adsorption |
Table treatment: Teflon coating |
Print model: 3D. Wave. Rand. Eclosion |
Motion config: Servo motor |
Control interface: Control panel+Software |
Drive config: 3Pcs Linear rails+Dual Ballscrew |
System require: WINXP/WIN7/WIN10 32/64bit |
Working environment: 18-25℃, 50% Humidity |
Working power: 120W |
Electric supply: 110V/220V |
Interface: USB2.0/3.0/TCPIP |
Gross weight/Net weight: 230KG/150KG |
Packing size: 113cm*132cm*93.5cm |
Machine size: 98cm*121.5cm*67.8cm |
Advantages:
1)CMYK+LC+LM+W+Varnish 8 color ink type
2)Compatible with Epson XP600 print head
3)Max. 60cm*40cm A2 printing size
4)With 3 high-power Taiwan Delta bvacuum suction fans
5)With Hiwin brand linear rail and ball screw , no noise , high speed , high resolution
6)Adopting American GMC luxury car standard insulation anti-interference wiring
7)Automatically ink wipe , maintenance system , prevent scratching and avoid printing head clog in idle time
8)Ink level sensor with light and alarm
9)Magnetic shaking setting ink the ink tank which can twirling in the bottle to avoid precipitation of white ink
10)High-sensing touch screen control button
11)Automatic detecting exactly height sensor, avoiding print head scratch
12)Stainless steel body of printer , no worry about the oxidation as ink drip on it
13)Every cable was clearly marked which is convenient for customer learning and operating
14)Stainless steel body of printer , no worry about the oxidation as ink drip on it
15)Complete acrylic cover , you couldn't find any screw or connection line on surface
etc. latest research and development results!
The UV Printing Process
UV printers use ultraviolet LED lights to dry or cure ink during the printing process. Attached to the print carriage is a UV light source that follows the print head. The LED light spectrum reacts with photo-initiators in the ink to instantly dry it so that it immediately adheres to the substrate.
With instant curing, UV printers can create photorealistic graphics on a variety of materials including items like plastic, glass and metal.
Some of the major benefits that attract businesses to UV printers are:
Environmental Safety
Unlike solvent inks, true UV inks release little to no volatile organic compounds (VOCs) which makes this printing process eco-friendly.
Faster Production Speeds
Inks cure instantly with UV printing, so there’s no downtime before finishing. The process also requires less labor and enables you to get more done in a shorter period of time than with other printing techniques.
Lower Costs
There are cost savings with UV printing because there’s often no need to use additional materials in finishing or mounting and additional protection with laminates may not be needed at all. By printing directly to the substrate, you end up using less materials, which can save you time and labor.
Absolute great samples printed
Application of China Manufactory Alpha Functional Printer DX10/DX11 Digital Printing Machine
Glass, plastic, metal, leather, acrylic, wood, ceramic, PVC, ABS, stone, cardboard, paper, cylinder bottles, balls, pens, phone cases, id cards, bags, boxes, photo album, oil paintings, slipper etc.
Or, if you take a machine for sell:
CUSTOMER FEEDBACK
Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices.

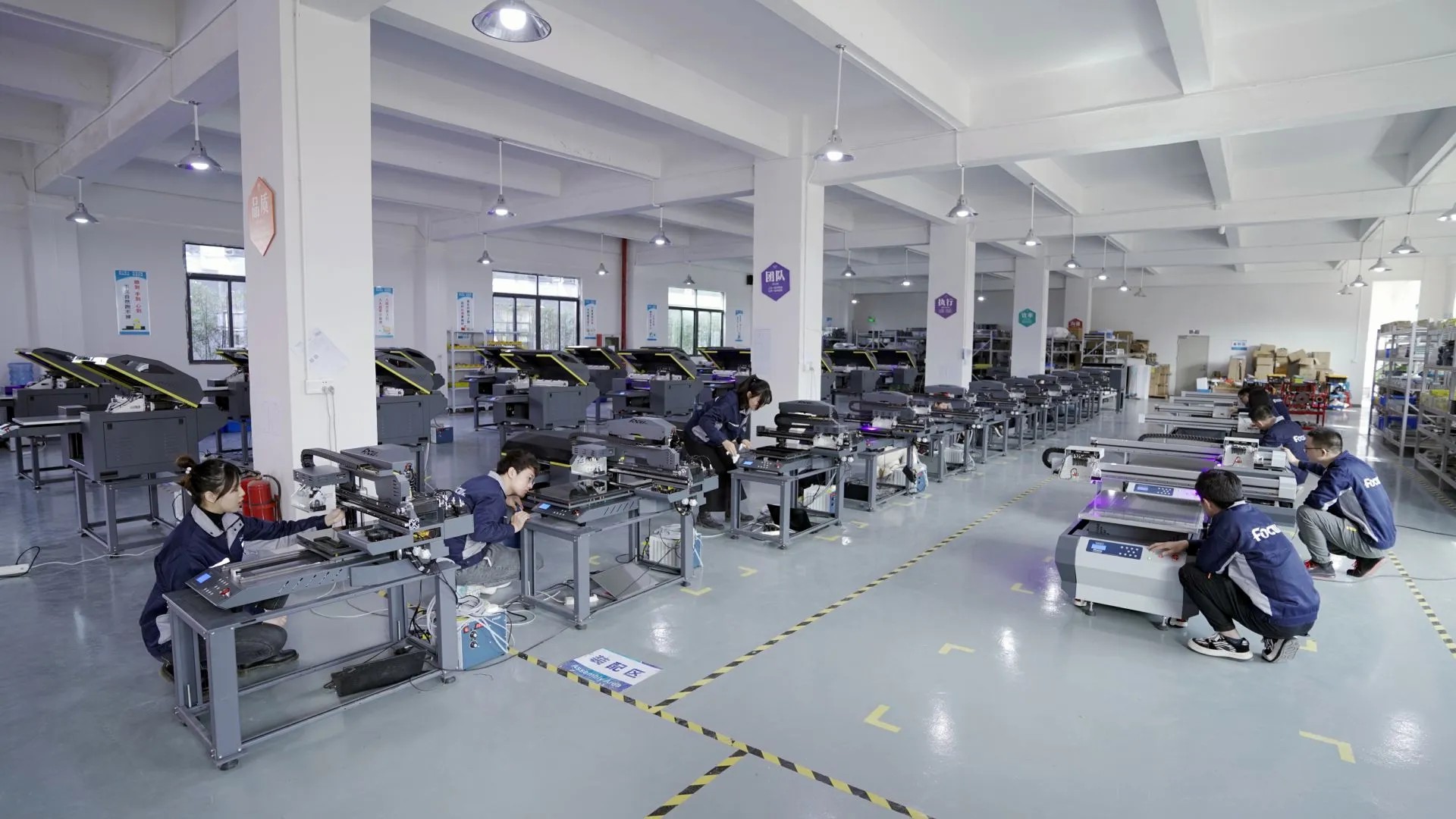

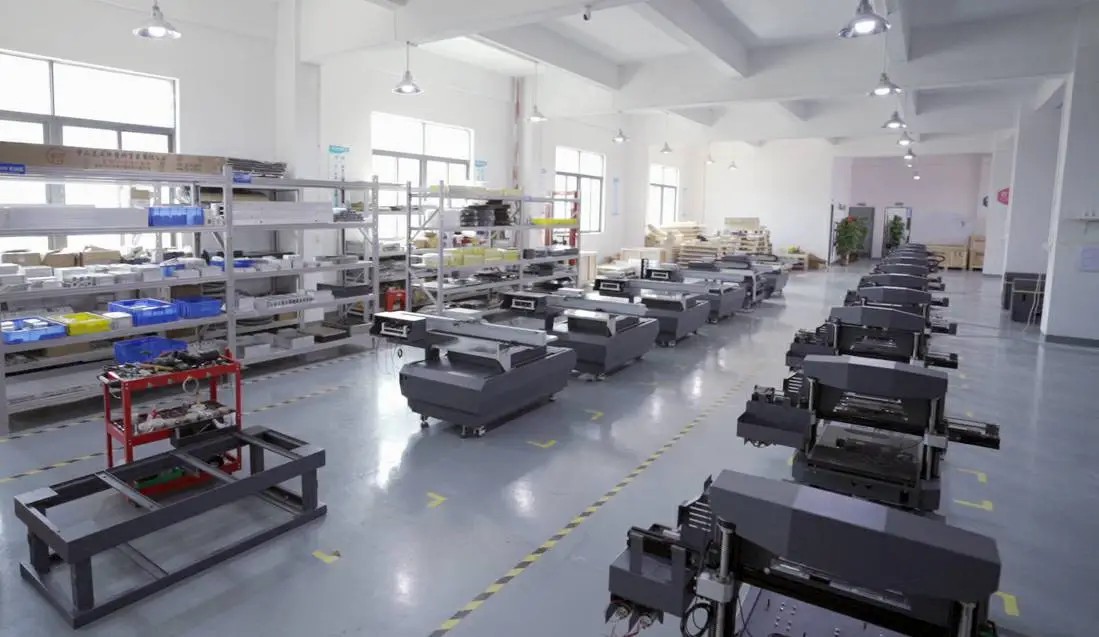

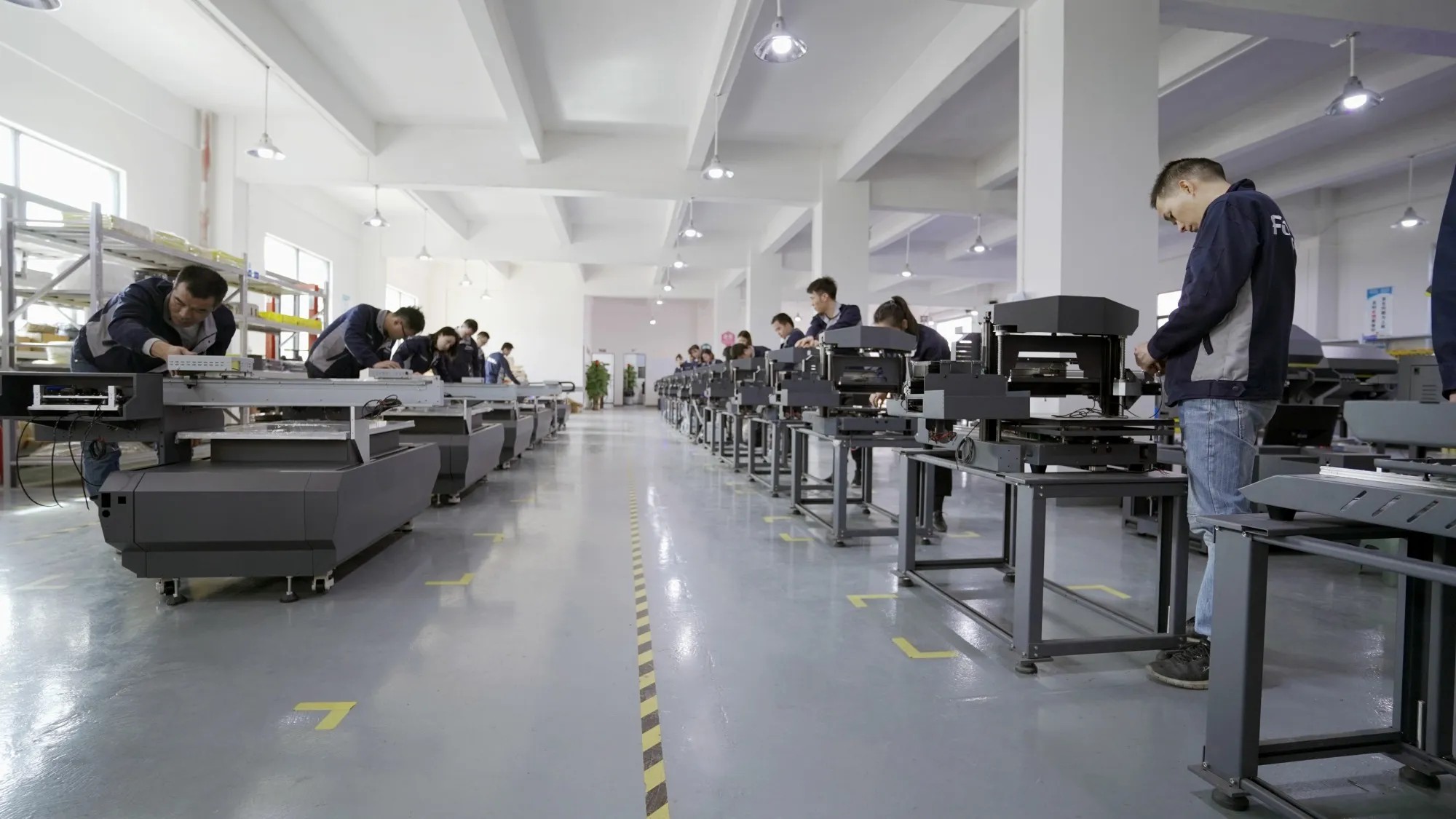

OUR EXHIBITION
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.

FAQ
undefined
Ratings & Reviews

A***i1
Oct 04,2024
Regarding the Tradeshow. Thank you for sending engineer, He is extremely Knowledgeable and had both printers printing beautful. The new Cobra pinter is defnitely a great industrial printer!! Now we have a start to sell this printer!!!!!

l***i2
Oct 08,2024
You are teaching me well. I need to know more than average customers do. l'l be assistimg them as you do for me here in US with customers. Cobra training video is excellent.

121-1251
Aug 13,2024
Oh, it's very good ! I have 6 printers, All focus inc, they make very very good job and helped my business grow.

12***i
Oct 03,2024
The print quality is excellent, I am so happy, I assembled machine and made my first print in less than 2 hours, I will consider ordering 2 more Cobra by the end of this year.

l***i
Oct 16,2024
Regarding the Tradeshow. Thank you for sending engineer, He is extremely Knowledgeable and had both printers printing beautful. The new Cobra pinter is defnitely a great industrial printer!! Now we have a start to sell this printer!!!!!
Alpha-Jet inkjet printers for boxes
