Product introduction
Focus large-format ATLAS-1311 UV printer
Printing height is as high as 320MM.
High-jet 10MM printing technology, to achieve a large number of surface material printing, providing perfect solutions for special-shaped materials such as toys, Lego, packaging, gifts, handicrafts, and other industries.
Appearance display
Internationally popular space gray + piano white + bright yellow color design, fashionable frontier
The printing height is 320MM. Print more possibilities.
High-jet 10MM printing technology, to achieve various printing on the different substrates.
Independent servo motor cylindrical printing technology.
| Focus Inc. Atlas-1311 Specifications | ||
| Printing method | Piezo ink-jet technology | |

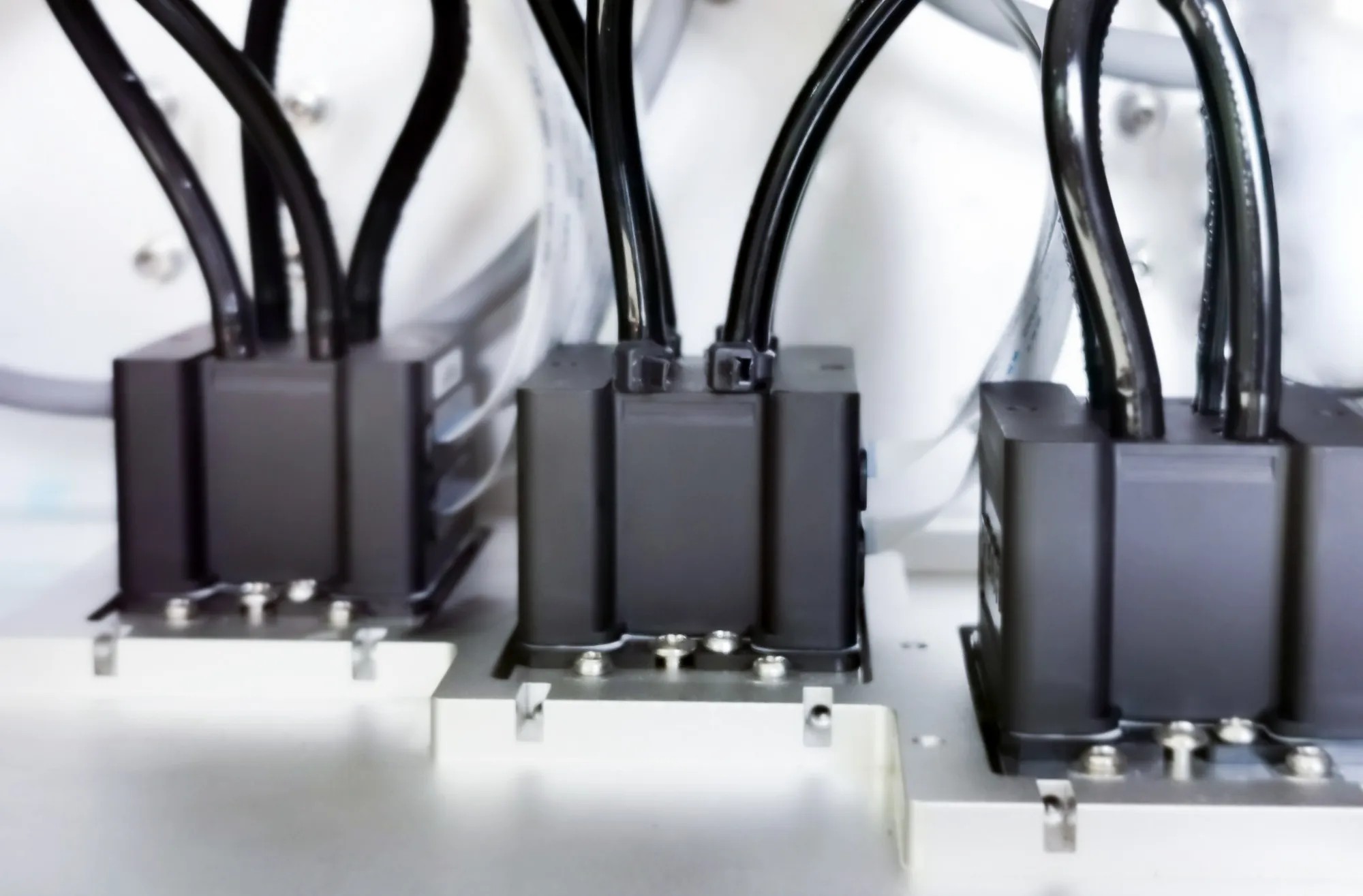

| Print head | Standard cofiguration | 3/4pcs * Ricoh Gen5i-TH5241 (All Specification according to Gen5I as follow) |
| * Optioncal configuration | RICOH Gen5, Gen6 / TO SHIBA CE4 / EPSON I3200 | |
| Number of nozzles | 1,280 staggered, 320 x 4 rows | |
| Jetting frequency | 40kHz (2 levels) 24kHz (4 levels) | |
| Drop volume | 3/6/12/21pl, 3pl (Single drop), 3～12pl (max 21pl) (Multi drop) | |
| Max. droplet height | 1~20 mm gap High-Jet technology depending on ink | |
| Print resolution (dots per inch) | 720*600dpi 720*900dpi 720*1200dpi 720*2400dpi Uni-direction/Bi-dirction | |
| Print Head protection technology | Auto carriage anti-scratch sensor & electromagnetic detect kit | |
| Print Head mainten technology |
Positive pressure clean system & keep wet cap station system & clean&Flashing during printing and idle |
|
| Media optimize technology | 2pcs ionizer eliminator to remove static on media | |
| Media aligment | Automatic aligment | 13pcs Automatic zero Margin electric alignment pins |
| Media height detect | Automatic gap detect | Parameter input & electromagnetic kit |
| Media | Maximum printing area | 52.7 (width) × 51.1 (length) in. (1,340 × 1,140 mm) |
| Maximum load size | 53.3 (width) × 44.8 (length) in. (1,355 × 1650 mm) | |
| Maximum thickness | 12.5 in. (320 mm) | |
| Maximum weight | 143 lbs/m2 (65 kg/m2) | |
| Ink | Type | UV Curable Ink, Solvent, Aqueous |
| Color | KCMY+W+VARNISH / W+KCMY / KCMY+VARNISH | |
| Ink tank capacity | 1500ml per color | |
| Sub Ink tank capacity | 50 ml per color | |
| Ink process unit | Ink supply system | Two - Way Outputs Automatic refill negotive pressure |
| Ink filt system | 10μ filter | |
| Ink heat system | Automatic sub-ink tank heating | |
| Ink curing unit | Cooling technology | Water circulation cooling |
| Curing technology | 405nm UV-LED lamp * 3pcs | |
| UV lamp power | Total 3pcs: 750W (300W*2pcs+50W*1pcs Adjustable) | |
| Media vacuum system | Vacuum power | 800W |
| Vacuum area | Up to 4 vacuuming areas individual lay out | |
| Vacuum control | Electronic button switch control | |
| Add-on jig kit (Optional) | Eletronic Rotary jig | Individual motor electronic control kit, diameter 6mm~250mm adjustable |
| Shoes jig | Available | |
| Custom design jig | Available | |
| Dimensions | Machine size | 94.7 (W) × 73.2 (D) × 45.7 (H) in. (2,405 × 1,858 × 1,160 mm) |
| Packing size | 100.4 (W) × 78.8 (D) × 58.7 (H) in. (2,550 × 2,000 × 1,490 mm) | |
| Weight | Net weight | 1,430 lb (650 kg) |
| Gross weight | 1,650 lb (750 kg) | |
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) |
| Humidity | 40 to 80 % | |
| Included items | Enthernet cable, cleaning kit, USB Flash of manuals and installation videos, Ink filter | |
| Connectivity | Enthernet cable | |
| Power requirements | 30A Single-phase 220 V, 50HZ | |
| Acoustic noise level | 75 dB (A) or less | |
| Software System Requirements | ||
| Print control | System | Windows® 7/10 (64 bit) Recommend |
| (Bundled) | CPU | Intel® Core™ i5, 2.5 GHz or more |
| RAM | 8 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more | |
| Working space 100 GB | ||

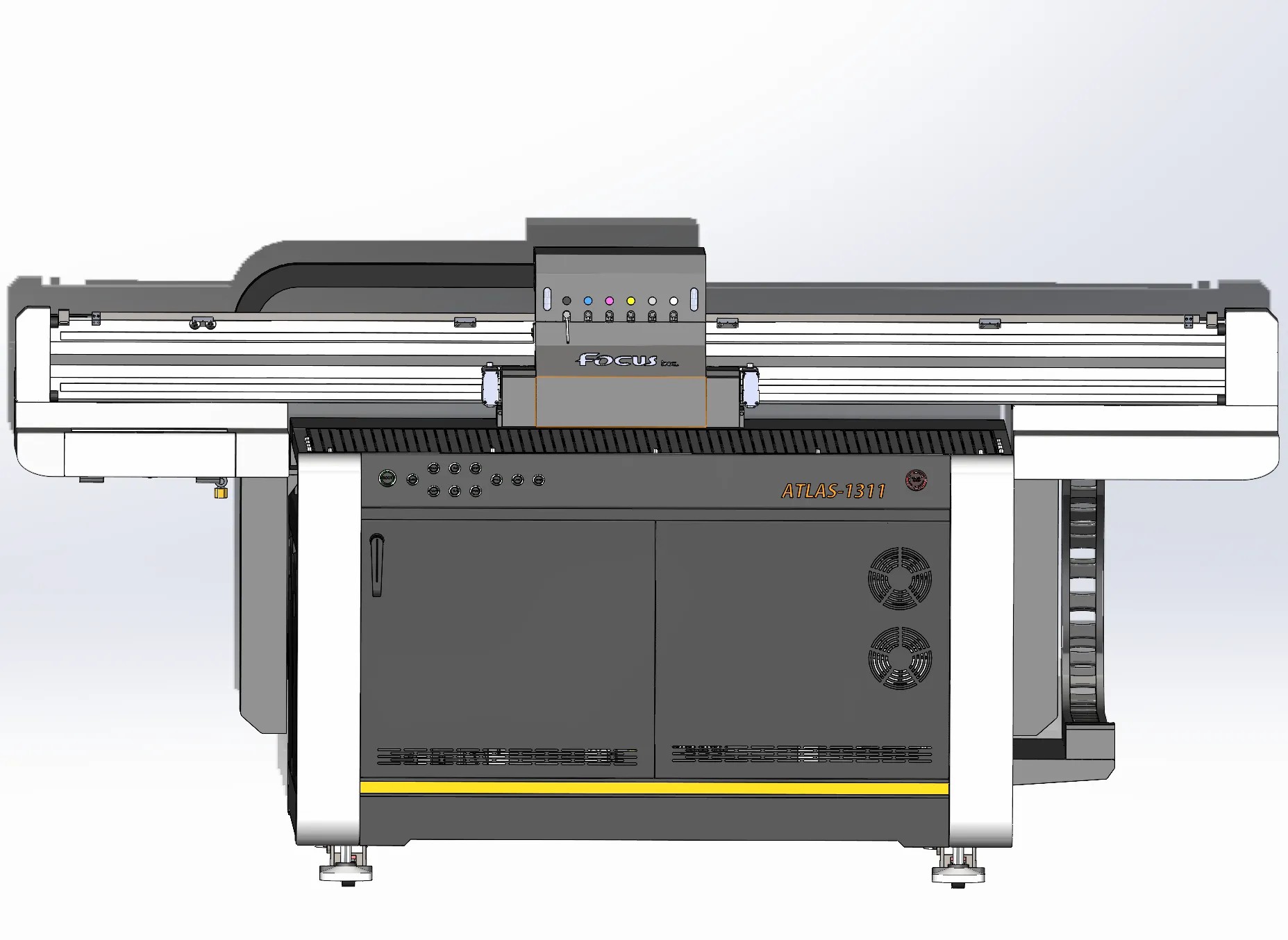

Three-dimensional design more details
▲One-key automatic height measurement module
▲ Quiet type 50 million times folding resistance towline, effectively protect the ink circuit and circuit
▲ Multiple cylinder prints at once
▲ Two-way negative pressure cleaning control system, realizes automatic ink shortage and ink replenishment, and one-key cleaning function
