The newest packaging label printer is an efficient printing device designed for commodity packaging, product identification and information display. The device uses advanced printing technology to quickly and accurately print high-quality labels on various materials, and is widely used in industries such as food, cosmetics, electronic products, and daily chemical products. Its main features include high-resolution printing, stable working performance, and compatibility with label papers of different specifications.
This label printer uses an intelligent operation interface, and users can easily set the printing content, adjust the label size, font, graphics, etc. It supports multiple data input methods to ensure the accuracy and consistency of information while improving production efficiency. With its flexible adaptability, it is suitable for various production lines, can be batch printed, reduce manual operation and error rate, and improve overall production efficiency.
In addition, the packaging label printer has an efficient printing speed and energy-saving design, which can meet the high-frequency and high-demand production environment. Its compact structure and small footprint make it suitable for wide application in enterprises of different sizes. Through simple maintenance and care, it can operate stably for a long time, save costs for enterprises and enhance the market competitiveness of products.
PRINTING DEMO:
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Focus Viper-391s Label printer go with Focus CR-391 Roll to Roll label die cutting waste removal machine
Please Click here fore more information about Focus CR-391S Roll to Roll label die cutting machine
TECHNICAL FEATURE:
Full colour Automatic PET Bottle Blowing Machine Bottle Making Machine Food Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
| Focus Inc.Viper-391s Series Industrial Inkjet Color Label Printer Specifications | |||
| Item | Viper 391s-A4 | Viper 391s-A3 | |
| Maximum printing area | 8.26" (210mm*Y no limited) | 12" (304mm*Y no limited) | |
| Print head | 1pcs HP A4 Pagewide Print Head | 1pcs HP A3 Pagewide Print Head | |
| Print Nozzle Ammount | 42240 Nozzles (4224*10 Rows) | 59136 Nozzles (4224*14 Rows) | |
| Printing method | Hp Pagewide Bubble-Jet Print Technology | ||
| Print resolution (dots per inch) | 1200*300dpi, 1200*400dpi, 1200*600dpi, 1200*1200dpi, 1200*2200dpi | ||
| Print Head protection technology | Carriage anti-scratch kit | ||
| Print speed | 10~40meter/min (According to different resolution) | ||
| Media size | Maximum load width | 12.6", 320mm | |
| Maximum thickness | ≤φ350mm | ||
| Roller Inner diameter | φ75mm, φ40mm, φ25mm | ||
| Media type | Focus Inc. Approved media; Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET); Glossy, Matt | ||
| Media margin aligment | 4pcs Automatic Laser guideline margin + Margin Rule Aligment | ||
| Media Process | Roll to Roll / Roll to Cut (*Optional) / Print-Hold | ||
| Media Feeding | Unwinder, Rewinder; Self-Tenssion Control / Pieces Holder | ||
| Sensor Type | Gap / Reflective sensor for black mark (*Optional) | ||
| RIP Software | Control &Rip All in one (Included) | ||
| Job format | Tiff, Png, Jpeg, Pdf... | ||
| Control interface | 3.5" LED Touch Screen + 10.1" LED Touch Computer (*Optional) | ||
| Ink | Type | Aqueous, Dye,Pigment, Edible | |
| Color | Black, Cyan, Magenta, Yellow | ||
| Ink tank capacity | 500ml per each color, Refill | ||
| Dimensions | Printer only | 24.7 (L) × 23.5 (W) × 23.6 (H) in. (629 × 598× 600 mm) Main printer | |
| Unwinder, Rewinder size | 13.0 (L) × 26.1 (W) × 14.3 (H) in. (330 × 664 × 364 mm) /One | ||
| Packing size | 57.0 (L) × 33.6 (W) × 29.1 (H) in. (1,448 × 854× 740 mm) All | ||
| Weight | Net weight | 143 lb (65kg) Printer only; 112lb (51Kg)Unwinder+Rewinder | |
| Packing weight | 341 lb (155 kg) All | ||
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) | |
| Humidity | 40 to 80 % | ||
| Included items | Print cable, Cleaning kit, USB Flash of manuals and installation videos | ||
| Connectivity | Ethernet cable | ||
| Power requirements | 9A, Single-phase 220V, 50~60HZ; | ||
| Acoustic noise level | 75 dB (A) or les | ||
| Software System Requirements | |||
| Print control | System | Windows® 7/10/11(64 bit) Recommend | |
| (Bundled) | CPU | Intel® Core™ i5, 2.5 GHz or more | |
| RAM | 8 GB or more | ||
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | ||
| HDD | Install space 1 GB or more | ||
| Working space 100 GB | |||
*Note: Technical instructions subject to change without notice.
TECHNICAL ADVANTAGE:
42240 ammount of high-speed inkjet nozzles enable high-speed and high resolution printing
Support Max. A4/A3 size 310mm roll media loading printing
Unwinder and rewinder Self tension controller can allow to print under different diameter and thickness media
The 500ml large-capacity refillable ink tank with ink shortage alarm ensures continuous high-speed printing of materials also reduce big cost for mass production printing.

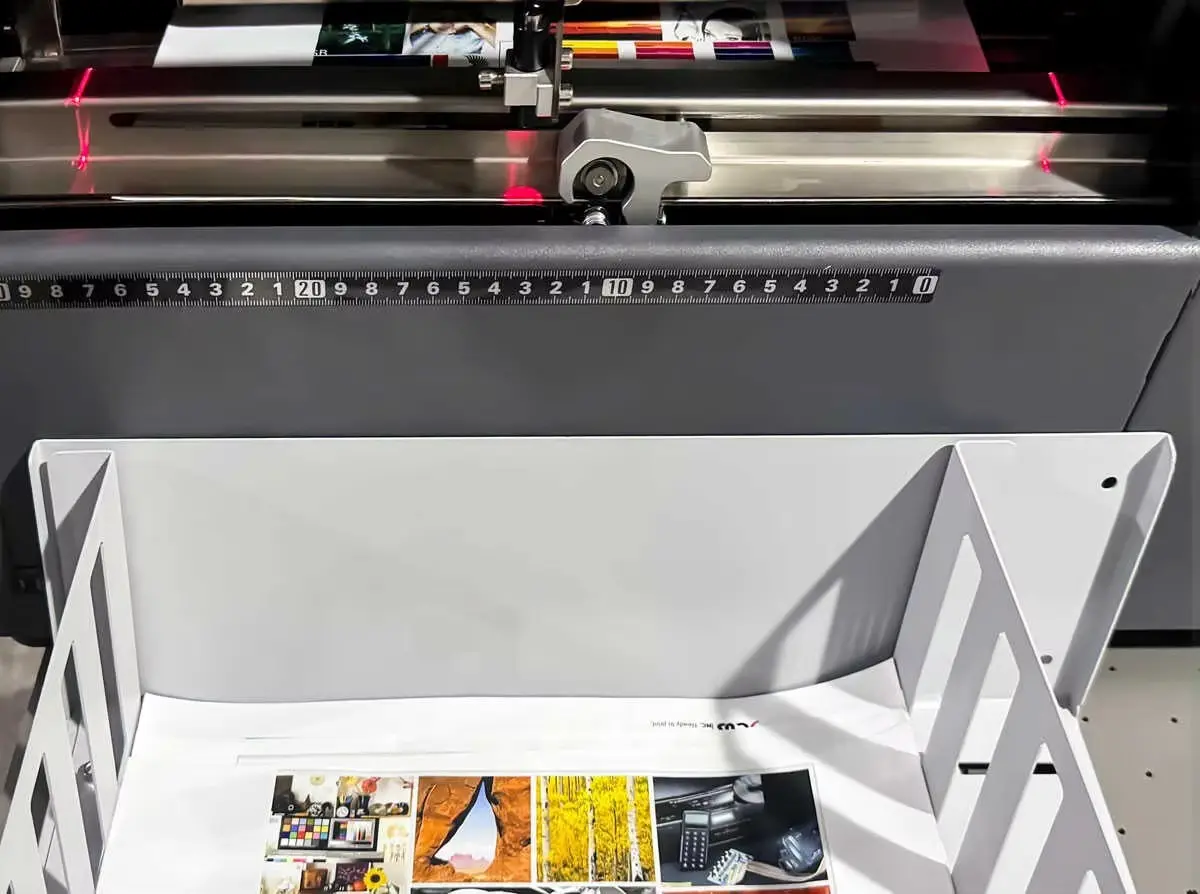

Roll to pieces media holder can arranging the media after cut to improve the production.
Support various kinds of ink printing such as water based dye ink and pigment ink to got waterproof and vivid color also
Gap / Reflective sensor for black mark (*Optional) avaliable to print media with pre-cut or after cut
With Focus Control&Rip all in one system allow you to print with different type of variable data barcode easy. and the barcode can be set change to print automatically.
High quality margin laser sensor can aligment the media under several seconds to avoid print overlap. therefore high quality borderless media printing.
Industrial touch screen oepration.
Industrial Touch screen go with PLC can operate the printer faster and easier.
Print speed and cut speed adjustable to match different print model
PRINT SAMPLE:
 |
 |

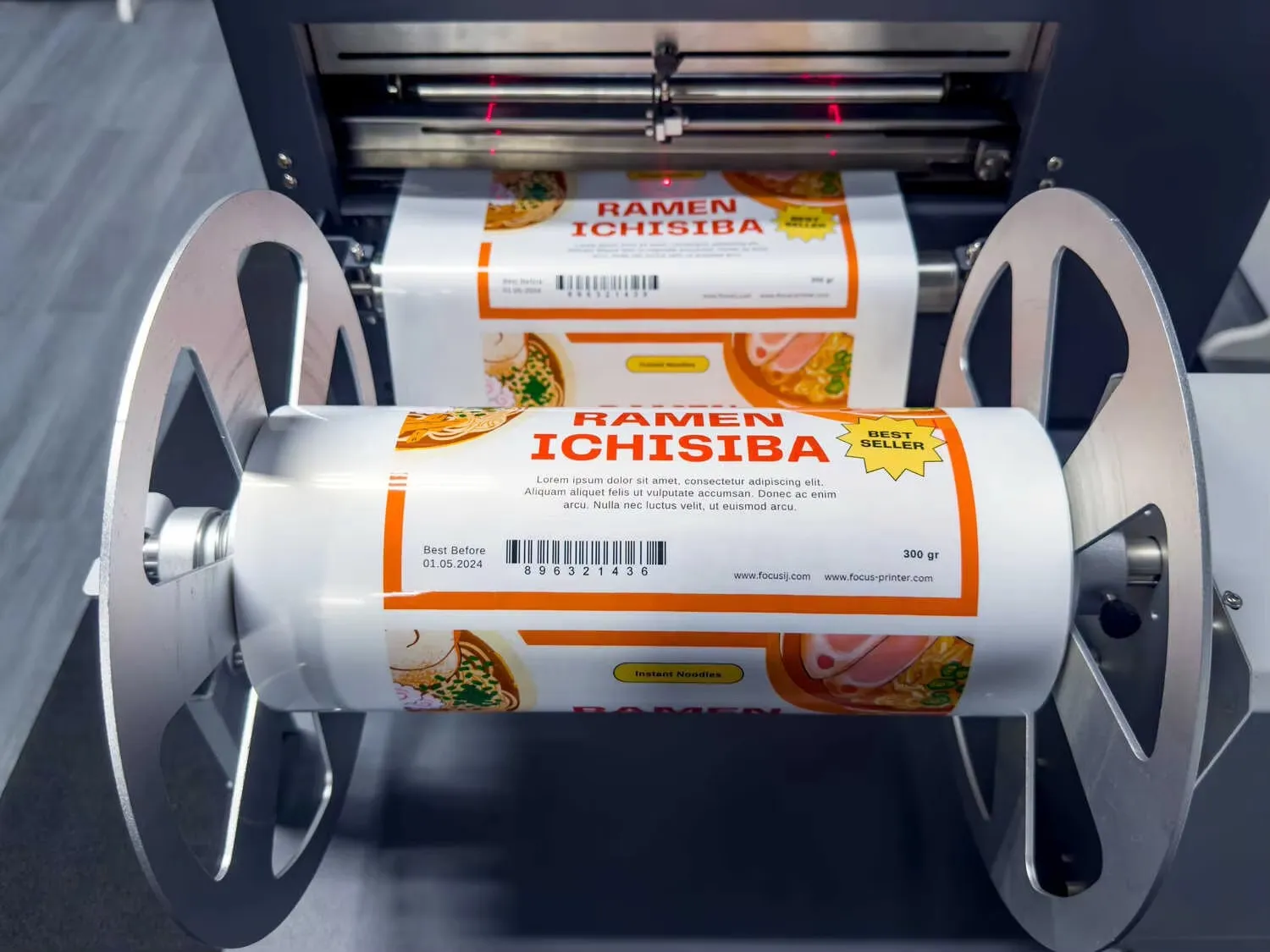

| Food label printing sample. With focus water based ink can print on various of food labels |
Barcode printing sample. With Focus newest control system can gender variale data barcode printing. |
 |
|
| High resolution Monochrome printing sample. With Focus inc. high quality ink and halftone droplet size control technology can get sharp Monochrome printing quality. |

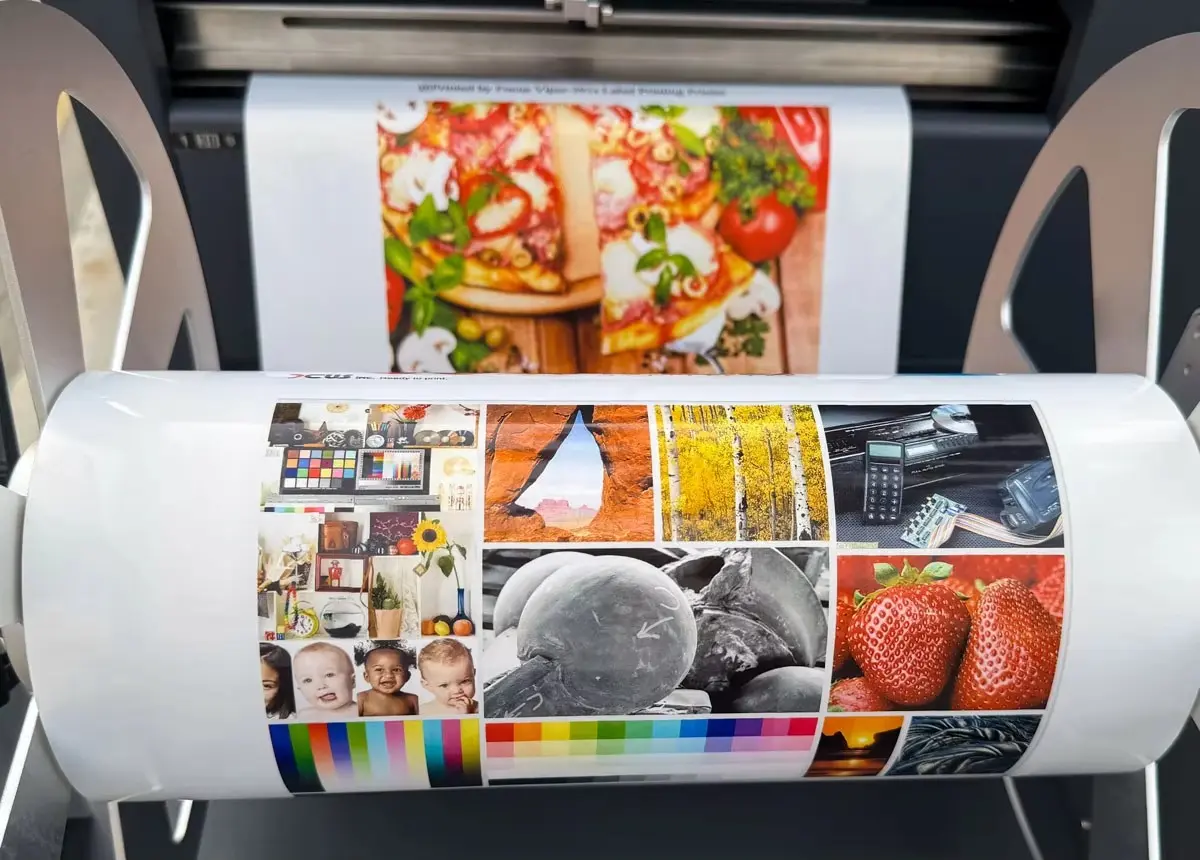

Colour printing sample. Thanks to Focus powerful ICC color management system to ensure the vivid grayscale details colour printing. |
APPLICATION:
With Focus VIPER-391S Full color label printer, you can print on any labels for various of industry as food, bags, packaging, bottle wrap...
