Product introduction
Contact us for a Custom Quote NOW!

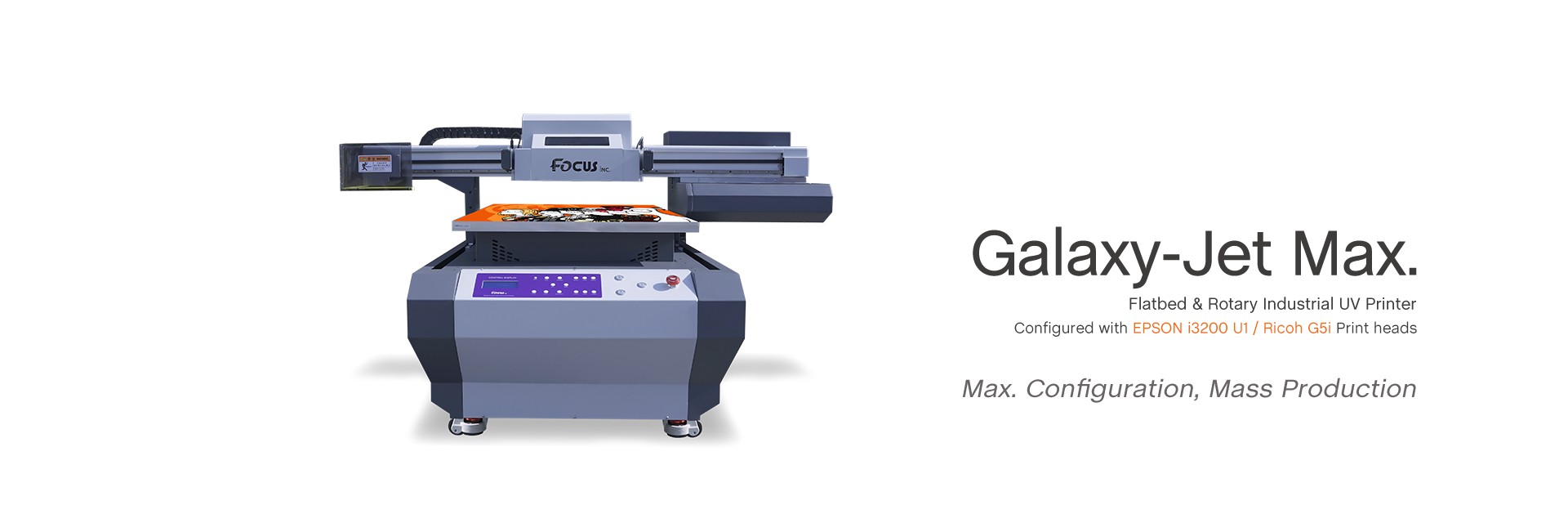

Why Choose Galaxy-Jet Max Digital UV Printer?
| Key Features | Value & Benefits |
|---|---|
| Head Options | Epson i3200 for Mass Production, Ricoh G5i for High Droplet, Big Curve Printing |
| Printable Surfaces | Flexible, Flatbed, Irregular Products |
| Flatbed UV Printing | White Color Varnish |
| UV Lamp Power | 3pcs of 600W Big LED UV Lamps |
| Max. Printing Size | 600mm*900mm*180mm |
| Automatic Height Sensing | Advanced Laser Technology for Automatic Height Detection |
 |
 |
| Customize your printing experience with our cylindrical fixture, allowing you to print on various cylindrical objects, from cans to cups. | Equipped with a liquid level sensor, preventing printhead damage by alerting when ink levels are low. |
 |
 |

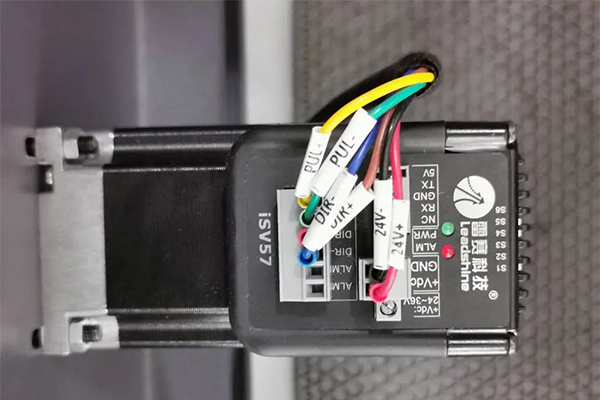

| Automatic height sensing feature detects and adjusts print height according to material height, with a maximum reach of 18.5cm. | The UV flatbed printer employs internationally renowned Riso motors, ensuring high stability and reliability. |
 |
 |

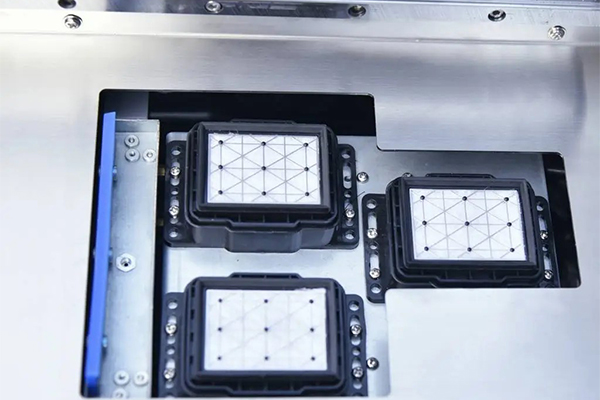

| Precision craftsmanship with CNC vacuum adsorption platform, ensuring stable printing and safeguarding expensive printheads. | Enjoy hassle-free maintenance with the automatic lifting feature in the cap station, ensuring a clean and moisturized printhead. |
Discover Digital UV Flatbed Printer Production Site
* Kindly leave your contact info and needs NOW!
We'll customize a solution for you
Discover the Focus Affordable UV Printer Model Series
Global Shipping - Lowest Rates Solution
| Focus Inc. Galaxy-Jet 6090 Max-i3200 U1 Specifications | ||
| Printing method | PrecisionCore MicroTFP Piezo ink-jet technology | |
| Print head | Standard cofiguration | 1~3pcs of EPSON i3200 U1 heads |
| Number of nozzles | 3,200 staggered, 400 x 8 rows | |
| Jetting frequency | 43.2kHz (Binary), 21.6kHz (4 levels) | |
| Drop volume | Binary: 5 pl at 43.2 kHz | |
| 3 levels grey scale: 6, 12.5 pl at 21.6 kHz | ||
| 4 levels grey scale: 3.8, 6.2, 9.3 pl at 21.6 kHz | ||
| Max. droplet height | 1~10 mm gap MEMS technology depending on ink | |
| Print resolution (dots per inch) | 720*600dpi 720*900dpi 720*1200dpi 720*2400dpi Uni-direction/Bi-dirction | |
| Print Head protection technology | Auto carriage anti-scratch sensor & electromagnetic detect kit | |
| Print Head mainten technology | Keep wet cap station system & clean &Flashing during printing and idle | |
| Media optimize technology | 2pcs ionizer eliminator to remove static on media | |
| Media height detect | Automatic gap detect | Parameter input & electromagnetic kit |
| Media | Maximum printing area | 24 (width) × 36.2 (length) in. (610× 920 mm) |
| Maximum load size | 25.6 (width) × 52.4 (length) in. (650 × 1330 mm) According to media flexibility | |
| Maximum thickness | 7.08 in. (180 mm) | |
| Maximum weight | 132 lbs/m2 (60 kg/m2) | |
| Ink | Type | UV Curable Ink, Solvent, Aqueous |
| Color | KCMY+W+VARNISH / PRIMER+W+KCMY / PRIMER+KCMY+VARNISH | |
| Ink tank capacity | 500ml per each color | |
| Ink process unit | Ink supply system | Automatic refill positive pressure |
| Ink filt system | 10μ filter damper | |
| Ink curing unit | Cooling technology | Water circulation cooling |
| Curing technology | 405nm UV-LED lamp * 3pcs | |
| UV lamp power | Total 3pcs: 850W (400W*2pcs+50W*1pcs Adjustable) | |
| Media vacuum system | Vacuum power | 800W |
| Vacuum area | Full flatbed area adsorption | |
| Vacuum control | Electronic button switch control | |
| Add-on jig kit (Optional) | Eletronic Rotary jig | Diameter 12mm~200mm adjustable |
| Custom design jig | Available | |
| Dimensions | Machine size | 56.7 (W) × 58.3 (L) × 34.1 (H) in. (1,442 × 1,480 × 866mm) |
| Packing size | 62.9 (W) × 62.9 (L) × 43.3 (H) in. (1,600 × 1,600 × 1,100 mm) | |
| Weight | Net weight | 484 lb (220 kg) |
| Gross weight | 704 lb (320 kg) | |
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) |
| Humidity | 40 to 80 % | |
| Connectivity | Enthernet cable | |
| Included items | Enthernet cable, cleaning kit, USB Flash of manuals and installation videos, Ink filter | |
| Rated Working power | 480Watt | |
| Power requirements | 15A Single-phase 220 V, 50HZ | |
| Acoustic noise level | 63 dB (A) or less | |
| Software System Requirements | ||
| Print control | System | Windows® 7/10 (64 bit) Recommend |
| (Bundled) | CPU | Intel® Core™ i5, 2.5 GHz or more |
| RAM | 8 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more | |
| Working space 100 GB | ||

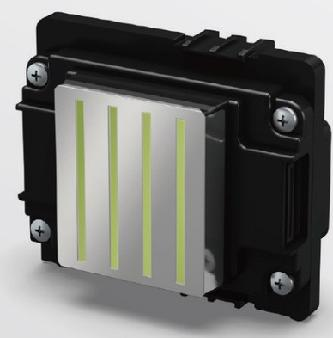

Epson Inkjet Head I Series
1.PrecisionCore Technology
a.All MEMS manufacturing and thin film piezo element can realize high precision and high density(600 npi/2 rows of nozzles).Contributes to compact,high speed,high quality,and high image quality.
b.Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
2.Support for grey-scale
Epson's unique Variable Sized Droplet Technology (VSDT)delivers smooth gradation by freely control to eject the droplet volume.
3.High resolution
Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour).In addition to the 13200,I1600 has also been added to the lineup in order to meet the various customer needs.
4.High durability
PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.
|
Product name |
13200-U1 |
13200-E1 |
13200-A1 |
|
|
Ink type |
UV |
Eco Solvent |
Aqueous |
|
|
Type |
PrecisionCore MicroTFP printhead |
|||
|
WidthxDepthxHeight |
69.1x59.4x35.6 mm |
|||
|
Weight |
82 g |
|||
|
Number of nozzle |
3200 |
|||
|
Nozzle pitch/nozzle row |
1/300 inch |
|||
|
Nozzle rows |
8 roWS |
|||
|
Nozzle Resolution |
300 npi /row 600 npi/2 rows |
|||
|
Max.number of colour inks |
4 colours |
|||
|
Effective print width |
33.8 mm(1.33 inches) |
|||
|
Droplet ejection performance |
Binary |
5 pl at 43.2 kHz |
6 pl at 43.2 kHz |
|
|
3 levels grey scale |
6,12.5 pl at 21.6 kHz |
6.3,12.3 pl at 21.6 kHz |
||
|
4 levels grey scale |
3.8,6.2,9.3 pl at 21.6 kHz |
3.8,5.5,8.7 pl at 21.6 kHz |
3.8,6.1,9.4 pl at 21.6 kHz |
|
|
Viscosity range |
5-7 mPa · s |
3-4 mPa · s |
||
|
Positioning Mechanism |
Reference hole |
|||

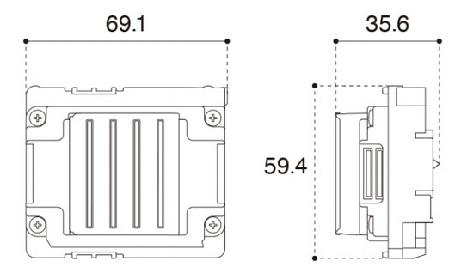

Product size (mm)
Nozzle (mm)

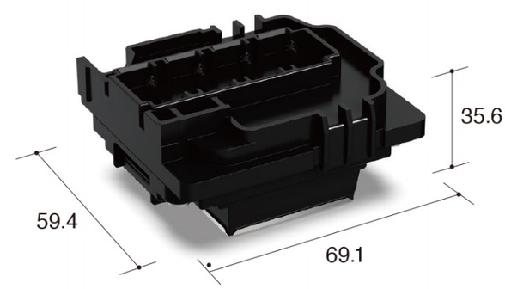

External dimensions (mm)
