Product introduction
Product descriptions from the supplier
APPLICATIONS
PROFIT CALCULATION
PROCESS FLOW
TECHNICAL DETAILS
 |
 |
| 1.Compatible with 13200,4720 and F1080printheads for dual-head printing to meetyour diverse needs,take into account the in-vestment cost and mass production | 2.The automatic lifting type cap stationdesign makes the head cieaning and mois-turizing more smooth and efficient |
 |
 |

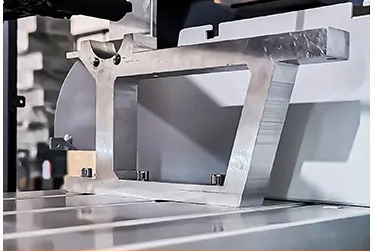

| 3.All keel made from high quality Pressurecasting aluminum to ensure the high speedstable printing | 4. The qulified HIWIN brand linear rail makesthe printing process run quieter and moresmoothly, thus improving the printing accura-cy |
 |
 |

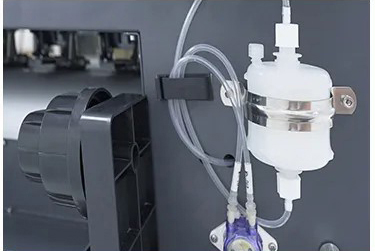

| 5.10μ white ink filt to ensure the white inkprinting stable | 6.The suction adjustable vacuum adsorptionfunction can prevent the printing film bendingfrom scraping the print heads |
 |
 |

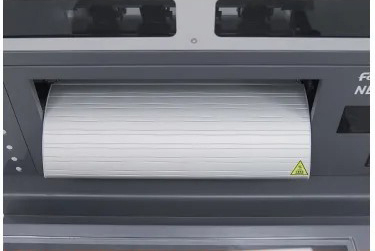

| 7.The Post heating function after printingmakes the white ink printing more stable andgreatly improves the concentration of thewhite ink | 8.Industry 4.0 tertiary circuit protectiondesign of the multi-functional printing boardgreatly improve the printing speed and print-ing quality |

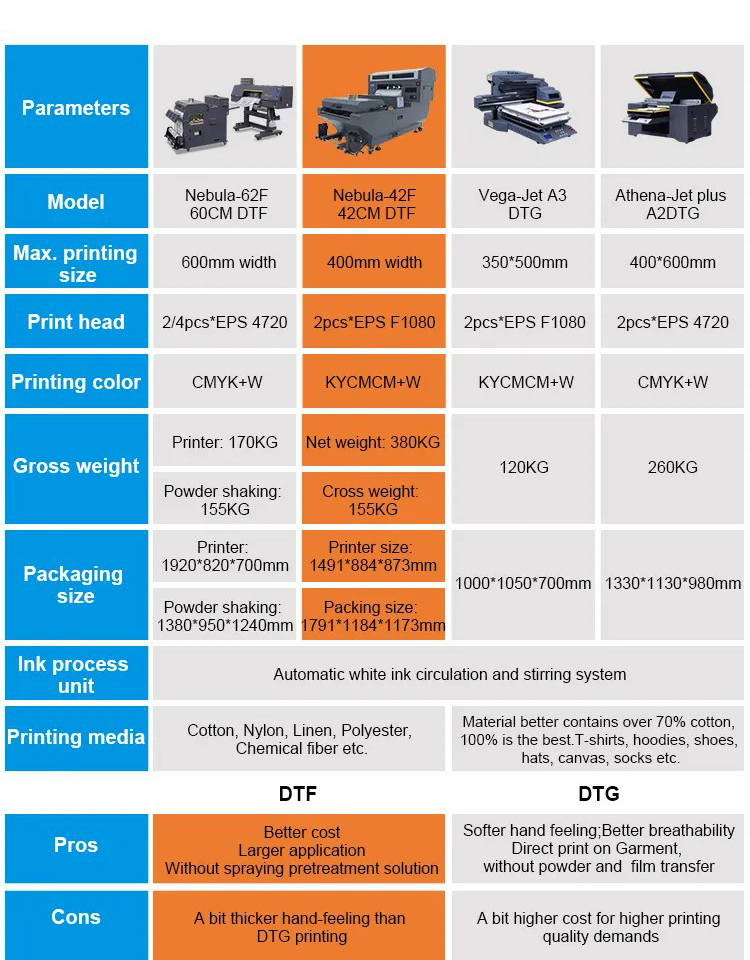

DTG&DTF COMPARISON
Company Profile
Think different! Print different!
With 16 years of printing experience, Focus Inc. aims to " Creation, Connection, Communication".Create something unique! Connect everyone with printing! Communicate with clients all over the world!
With the creative developing team, we provide create-oriented unique UV printers, DTG printers and DTF printers with all clients. We are committed to provide high-quality, environmental-friendly printers, devoted ourselves to technological innovation.
So far more than 1500 clients come from all over the world have choosing Focus Inc. to be their printing equipment partner, and clients share all their unique works with us, Focus Inc. links every-one as a big family!
We are ready to print! Ready to help! Ready to share!
Now start your fantastic printing or printing equipment business journey with Focus team !Focus Inc., all for customer's value.
SPECIFICATION:
| Focus Inc. Nebula-42F Specifications | ||
| Printing method | Piezo ink-jet technology | |
| Print head | Standard cofiguration | 2pcs*EPS F1080 Piezo print head |
| Number of nozzles | 2160 staggered, 180 x 12 rows (180 x 6 rows per each head) | |
| Jetting frequency | 16kHz max. | |
| Drop volume | 3.5～21pl (Variable data single drop & multi drop) | |
| Print resolution (dots per inch) | 360*1080dpi, 360*2160dpi,720*2160dpi; Uni-direction/Bi-dirction | |
| Print Head mainten technology | Auto keep wet cap station system & Clean flashing during printing and idle | |
| Media type | Roll feed media | Film, paper, leather etc with thickness less than 3mm |
| Media | Maximum printing width | 420mm Width X, Roll feed Y |
| Film type | DTF film | Professional Release liner DTF film |
| Transfer media | Garment transfer | Cotton, Nylon, Linen, Polyester, Chemical fiber, Leather etc. |
| Film Feeding | Automatic Release | Automatic tenssion release roller |
| Film Take up | Automatic Take up | Automatic detect electronic take up Roller |
| Film vacuum system | Automatic adsorption | Automatic adsorption aluminum vacuum table |
| Film size | Roll type | 400mm*100meter/Roll 、 310mm*100meter/Roll |
| Ink | Type | Aqueous DTF pigment ink |
| Color | KCMY LC LM+W | |
| Ink tank capacity | 220ml per each color; 500ml for white ink tank | |
| Ink process unit | White ink Stirring | Automatic white ink stirring system |
| White ink circulation | Automatic white ink circulation system | |
| Powder type | Hot melt powder | Grossus, Medium, Fines |
| Powder dusting | Automatic detect | Automatic detect & Speed adjustable |
| Powder recycle | Optional add-on | Automatic electric recycle belt, optional add-on |
| Powder melt baking | Hot melt | Far infrared rays baking @ Speed adjustable |
| Dimensions | Machine size |
Printer: 34.5(W) × 23.6(D) × 16.9(H) in. (876× 600× 431mm) Powder process system: 27.5(W) × 57.5(D) ×19.6(H) in. (700× 1,461× 500mm) All in one: 34.8(W) × 58.7(D) ×34.3(H) in. (884× 1,491× 873mm) |
| Packing size | 39.3(W) × 63.4(D) ×41.5(H) in. (998 × 1611 × 1053mm) | |
| Weight | Net weight | 473 lb (215 kg) for All |
| Gross weight | 649 lb (295 kg) for All | |
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) |
| Humidity | 40 to 80 % | |
| Working Power | Printer 200W, Powder process system 1100W | |
| Included items | Enthernet cable, cleaning kit, USB Flash of software etc. | |
| Connectivity | Enthernet cable | |
| Power requirements | 8A Single-phase 220 V, 50HZ | |
| Acoustic noise level | 75 dB (A) or less | |
| Software System Requirements | ||
| Print control | System | Windows® 7/10 (64 bit) Recommend |
| (Bundled) | CPU | Intel® Core™ i5, 2.5 GHz or more |
| RAM | 8 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more | |
| Working space 100 GB | ||
CUSTOMER FEEDBACK
Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices.
OUR EXHIBITION
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
FAQ
undefined
Ratings & Reviews
A***i1
Oct 04,2024
Regarding the Tradeshow. Thank you for sending engineer, He is extremely Knowledgeable and had both printers printing beautful. The new Cobra pinter is defnitely a great industrial printer!! Now we have a start to sell this printer!!!!!
l***i2
Oct 08,2024
You are teaching me well. I need to know more than average customers do. l'l be assistimg them as you do for me here in US with customers. Cobra training video is excellent.
121-1251
Aug 13,2024
Oh, it's very good ! I have 6 printers, All focus inc, they make very very good job and helped my business grow.
12***i
Oct 03,2024
The print quality is excellent, I am so happy, I assembled machine and made my first print in less than 2 hours, I will consider ordering 2 more Cobra by the end of this year.
l***i
Oct 16,2024
Regarding the Tradeshow. Thank you for sending engineer, He is extremely Knowledgeable and had both printers printing beautful. The new Cobra pinter is defnitely a great industrial printer!! Now we have a start to sell this printer!!!!!

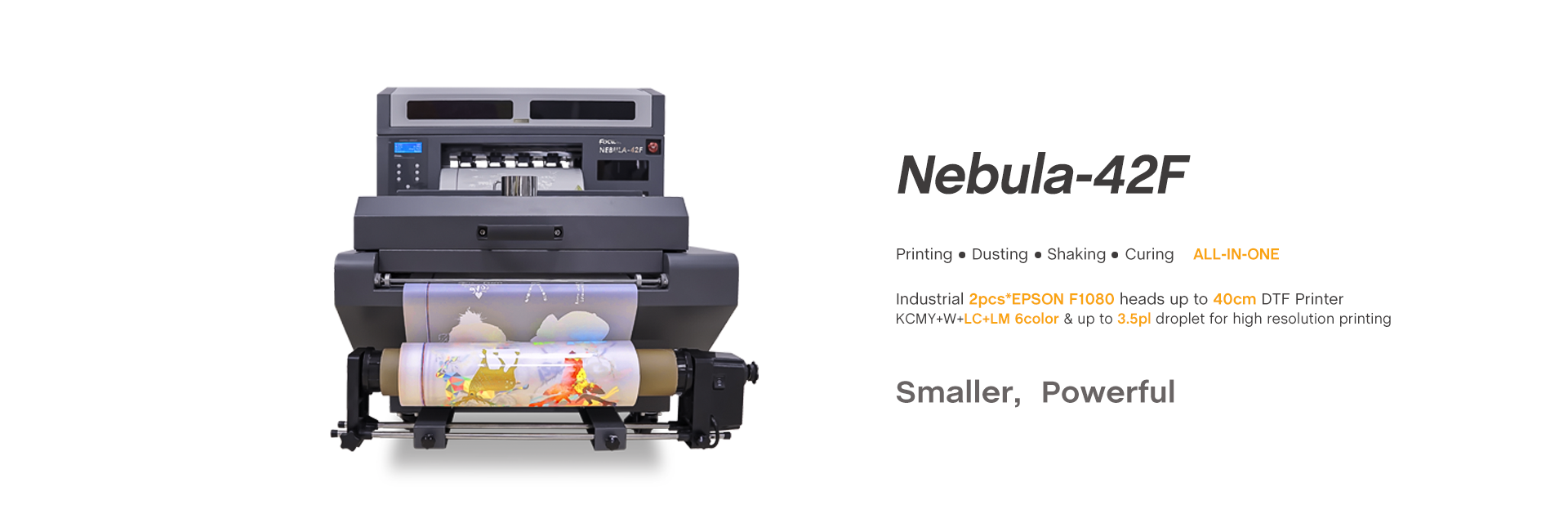

Nebula-42F dtf shirt printing machine
